Summit Recumbent Bike
with
DLED Console
Ergonomics, accessibility and commercial-grade engineering combine to deliver reliable, low-impact rides in high-use fitness facilities.
- Footprint 10% smaller than competitors delivers maximum performance in minimal space
- Supportive seating and step-through design maximize comfort and accessibility for all
- Commercial-grade frame and crank assembly deliver stable, confident workouts in demanding environments
Product availability may vary by region. Please contact your local office for more information.
Select a Console
A Sleeker, Smoother LED Experience
The DLED Console pairs bright workout feedback, intuitive controls and simple connectivity in a clean, easy-to-use design.
DLED Console
Sleek Modern Design
A slim console case brings the sleek aesthetic of a modern exercise experience to your facility.
Laidback Design. Lasting Durability.
Ergonomic Support for Comfortable Rides
A contoured seat and supportive back pad promote comfortable positioning, lumbar support and proper alignment throughout longer cardio workouts.
Easy Step-Through Access for Users
The open step-through frame makes entry and exit easier, supporting accessible recumbent cycling for a wide range of users.
Dependable Performance for Busy Fitness Centers
Built for Stability and Frequent Use

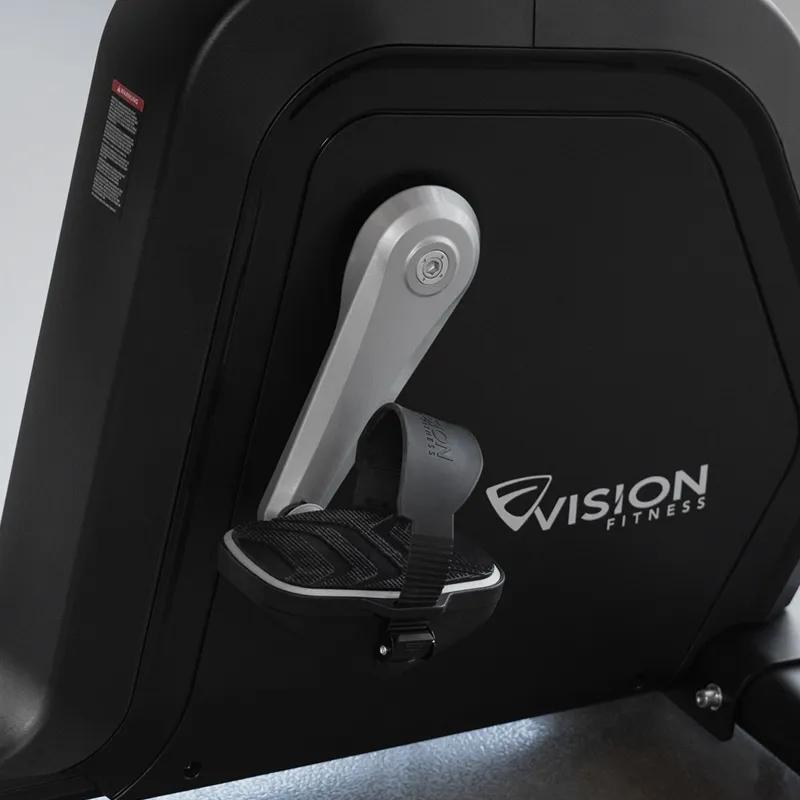

A reinforced crank assembly and durable construction provide stable support and dependable performance through demanding daily use in commercial fitness facilities.
Easy Service Access Reduces Downtime
Easy-access service points simplify routine maintenance, helping technicians work efficiently and return equipment to your cardio floor sooner.
Protected Components for Lasting Reliability
Sweat-resistant construction helps protect internal components from moisture, supporting dependable recumbent bike performance in high-use fitness environments.
Comfort and Access From Every Angle
Comfort and Access From Every Angle
Specifications
Product features and specifications subject to change.
Console
Display
14 x 10 dot-matrix workout profile LEDs and 22 numeric LEDs
Workouts
Go, manual, fat burn, intervals, constant watts†, goal, target heart rate, fitness tests
†Some of these programs may not be available on this frame.
Languages
English, German, French, Italian, Spanish, Dutch, Portuguese, Russian, Polish
WiFi
Optional: for connection to Vision Asset Management
Bluetooth
Yes: connection to Vision Fitness app, heart rate device or FTMS-enabled fitness app
USB Port
Yes: USB-A for device charging and software updates
Workout Feedback
5 displays allow user to toggle between time and distance, resistance level and calories, speed and RPM, watts and METS, heart rate and incline
NFC
Yes: one-tap connection to Vision Fitness app
Tablet Holder
Yes
QR Code
Yes: connects to console demonstration video and Vision Fitness app download link
Power consumption when turned off
≤ 0.3 W
Power consumption in standby mode
≤ 0.5 W
Frame
Frame Type
Heavy-gauge welded steel
Pedal Type
Self-balancing with adjustable straps
Seat Type
Custom one-piece, molded seat back and bottom
Seat Adjustment
23 positions
Resistance System
Single-stage, self-powered generator
Resistance Range
1–30
Handlebar Design
Console mast and seat-mounted with contact heart rate grips
Extras
Water bottle holder, reading rack
Assembled Dimensions (L x W x H)
149 x 64 x 143.7 cm / 58.6” x 25.2”x 56.5”
Assembled Weight
97.5 kg / 215 lbs.
Max User Weight
182 kg / 400 lbs.
Power Requirements
Self-powered or 100–240 V — 50/60 Hz AC (may vary by region)
Display
14 x 10 dot-matrix workout profile LEDs and 22 numeric LEDs
Workouts
Go, manual, fat burn, intervals, constant watts†, goal, target heart rate, fitness tests
†Some of these programs may not be available on this frame.
Languages
English, German, French, Italian, Spanish, Dutch, Portuguese, Russian, Polish
WiFi
Optional: for connection to Vision Asset Management
Bluetooth
Yes: connection to Vision Fitness app, heart rate device or FTMS-enabled fitness app
USB Port
Yes: USB-A for device charging and software updates
Workout Feedback
5 displays allow user to toggle between time and distance, resistance level and calories, speed and RPM, watts and METS, heart rate and incline
NFC
Yes: one-tap connection to Vision Fitness app
Tablet Holder
Yes
QR Code
Yes: connects to console demonstration video and Vision Fitness app download link
Power consumption when turned off
≤ 0.3 W
Power consumption in standby mode
≤ 0.5 W
